Standard Handrail Posts

Standard handrail posts are a fast and safe way of constructing safety railings. They can be installed along the edges of slabs, openings in the floor, and other locations where falling is a hazard to contend with. They can also be used for opposing guard-rails on formwork for walls.

Read more

Standard handrail posts are a fast and safe way of constructing safety railings. They can be installed along the edges of slabs, openings in the floor, and other locations where falling is a hazard to contend with. They can also be used for opposing guard-rails on formwork for walls.

Handrails have a dual purpose in that, while they help people safely navigate staircases, they can also act as barriers. If you’re looking for a product that will guide people and control access to an area, standard handrail posts are the ideal option. They also offer people something to grab in case they miss their footing, trip, or lose their balance. Handrail posts are part of an excellent safety line in construction.

If you have any questions about the galvanised hand sticks with raked balls and self-colour handrail sticks available at BM Steel, our experts can help.  Contact us for all your standard handrail post needs.


Read less


View Standard Handrail Posts FAQS

FILTERS7 products
  • display as grid Grid
  • display as list List
Filter
Close
Finish
Metric NB
Handrail Tube Diameter
Tube Type
Post Tube Diameter
Length
Colour
Handrail Diameter
Shank Diameter
Price
Additional Filters
Sort By







Per Page

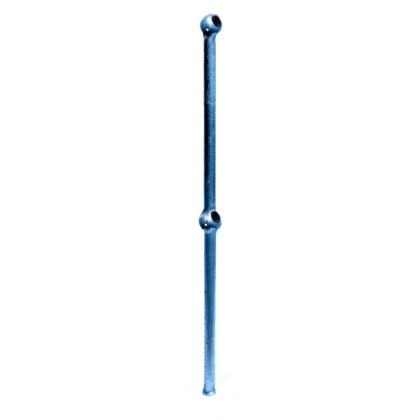

Galvanised Handrail Stick W/Raked Ball
Galvanised Handrail Stick W/Raked Ball
We offer a comprehensive range of tubular handrail standards in a variety of different sizes, thicknesses, finishes and end point options. Our handrails comply to BS5395P3 Standards.This galvanised tubular handrail standard suits 33.7mm tubes. This rail includes 38 degree raked balls and does not include any base or palm.Other dimensions include:Shank Diameter : 32mm (NB)Ball Diameter - 63mm (NB)Handrail...
£26.40 inc VAT
Galvanised Handrail W/Flat Base
Galvanised Handrail W/Flat Base
We offer a comprehensive range of tubular handrail standards in a variety of different sizes, thicknesses, finishes and end point options. Our handrails comply to BS5395P3 Standards. This rail includes a flat base to attach to walls and ground which have 2 x 18mm holes to fit M16 bolts. Other dimensions include: Base Thickness: 12mm Base to Ball: 550mm Ball to Ball: 550mm
from £24.85 inc VAT

Galvanised Handrail W/Horizontal Side Palm
Galvanised Handrail W/Horizontal Side Palm
We offer a comprehensive range of tubular handrail standards in a variety of different sizes, thicknesses, finishes and end point options. Our handrails comply to BS5395P3 Standards. This rail includes a horizontal side palm to attach to walls which have 2 x 18mm holes to fit M16 bolts. Other dimensions include: Base Thickness: 12mm Palm to Ball: 625mm Ball to Ball: 550mm
from £29.64 inc VAT

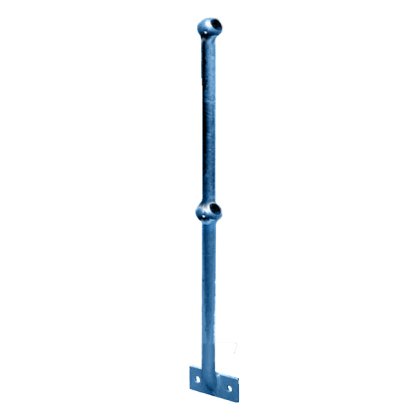

Galvanised Handrail W/Raked Ball and Horizontal Side Palm (Left Hand)
Galvanised Handrail W/Raked Ball and Horizontal Side Palm (Left Hand)
We offer a comprehensive range of tubular handrail standards in a variety of different sizes, thicknesses, finishes, and end point options. Our handrails comply with BS5395P3 Standards. This left-hand rail includes 38-degree raked balls and a horizontal side palm to attach to walls which have 2 x 18mm holes to fit M16 bolts. Other dimensions include: Length: 1000mm Base Thickness: 12mm Palm...
from £32.92 inc VAT

Galvanised Handrail W/Raked Ball and Horizontal Side Palm (Right Hand)
Galvanised Handrail W/Raked Ball and Horizontal Side Palm (Right Hand)
We offer a comprehensive range of tubular handrail standards in a variety of different sizes, thicknesses, finishes, and end point options. Our handrails comply with BS5395P3 Standards. This right-hand rail includes 38-degree raked balls and a horizontal side palm to attach to walls which have 2 x 18mm holes to fit M16 bolts. Other dimensions include: Length: 1000mm Base Thickness: 12mm Palm...
from £32.92 inc VAT

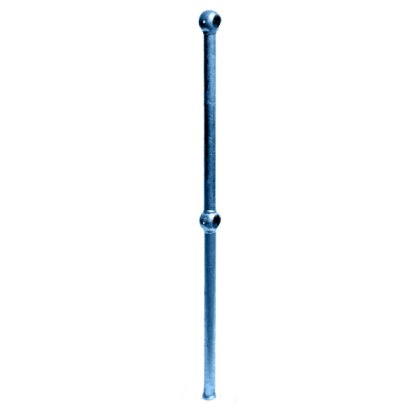

Self Colour Handrail Stick
Self Colour Handrail Stick
We offer a comprehensive range of tubular handrail standards in a variety of different sizes, thicknesses, finishes, and endpoint options. Our handrails comply with BS5395P3 Standards. This rail does not include any base or palm. Other dimensions include: Base Thickness: 12mm End to Ball: 750mm Ball to Ball: 550mm
from £22.20 inc VAT

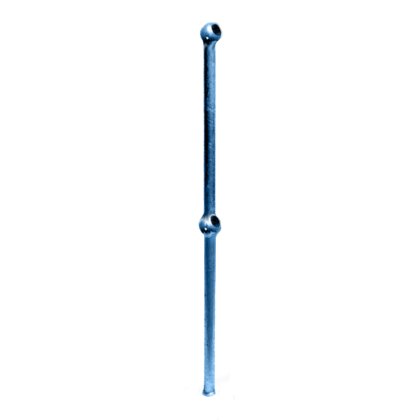

Self Colour Handrail Stick W/Raked Ball
Self Colour Handrail Stick W/Raked Ball
We offer a comprehensive range of tubular handrail standards in a variety of different sizes, thicknesses, finishes, and end point options. Our handrails comply with BS5395P3 Standards. This rail includes 38-degree raked balls and does not include any base or palm. Dimensions include: Shank Diameter : 42.4mmmm (32NB) Ball Diameter - 75mm Handrail Diameter - 42.4mm (32NB) Base Thickness:...
£26.40 inc VAT

Standard Handrail Posts FAQs

What is the standard size of a handrail post?

Handrail posts, balusters, or legs are generally 48mm in diameter but can go as high as 60mm for heavier loads.

What is the purpose of a handrail post?

It serves as a railing support. It’s used to ensure safety at the top level of construction.

What size are handrails in the UK?

In the UK, handrail size and height requirements are clearly set out in Section K of the building regulations. Handrail profiles should be either circular with a 40mm to 50mm diameter or oval and 50mm wide. They shouldn’t protrude more than 100mm into the stair’s width, and there should be 50mm of clearance between the adjacent wall and the handrail.

What is the spacing for railing support?

Spacing will vary according to your project. The two most common sizes for posts on decks, are 4x4 and 6x6. When using 4x4 posts, you’ll need to place them a maximum of 6 feet apart. And for 6x6 posts, no more than 8 feet apart.
