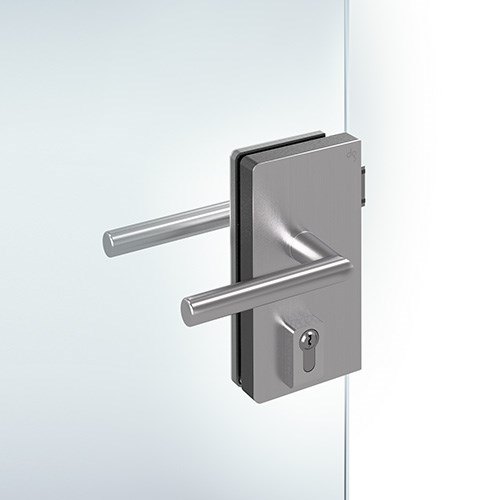

OFFICE Mundus Lock Profile Cylinder DIN & OFFICE Classic Hinge Set

Even on a single door in a frame with hinges, the OFFICE Mundus lock stands out with its special, angular shape. The lock is even more convincing in toughened glass assemblies in combination with matching MUNDUS corner fittings. The dark plastic frame emphasises the aluminium or stainless steel surfaces.

Advantages

• Reliable during heavy use
• Long lifetime due to high-quality materials
• Whisper-comfort noise reduction for quiet door closing
• Successfully tested by a neutral testing institute with 500,000 motion cycles of the latch function and 100,000 motion cycles of the deadbolt
• According to EN 12209

Specifications:

• Glass Type: TSG
• Glass Thickness: 8mm (in frames with 24mm rebate depth), 10mm (in frames with 26mm rebate depth; with special latch on request for frames with 24mm rebate depth)
• Max Leaf Weight: Up to 80kg
• Lock Design: Lock Profile Cylinder
• Material: Aluminium, Stainless Steel
• Surface: Anodised Satin, Silver or Black Finish
• Applications: 1 or 2 panels, sidelight

Set Includes:

• 1 x OFFICE Mundus Lock Profile Cylinder DIN Latch
• 2 x OFFICE Classic Hinges and Sleeves
• 2 x Frame Parts for Wooden Frame

Please see available downloads for more information.

This kit does not include door lever/handle.
