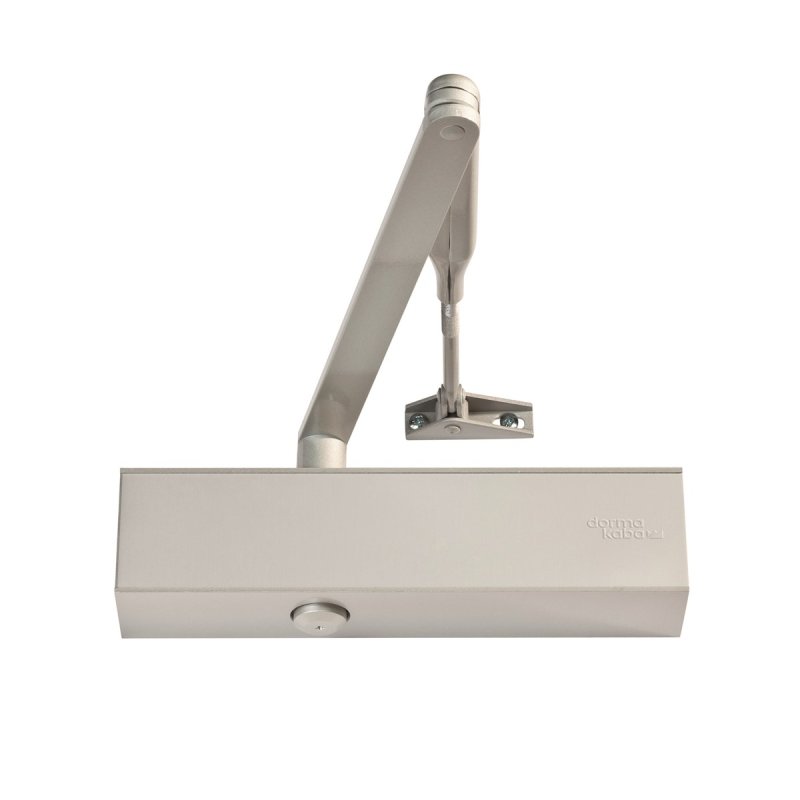

TS83 BC Rack & Pinion Door Closer (Complete Unit)

Decades of experience have gone into the development of the TS 83 door closer. It can be adjusted to suit almost all types of door. The DORMA TS 83 can even be supplied with additional anti-corrosion protection for exposed applications or aggressive conditions.

• Perfect solution for almost any application
• Adjustable power to suit door widths up to 1400mm
• With 'thinking' backcheck and delayed action
• Anti-corrosion protection
• For single and double leaf doors

Benefits for the trade/distributor

Low inventory costs and reduced stocking requirement thanks to streamlined product range

Practical and effective solutions to meet special applications thanks to comprehensive choice of accessories

Benefits for the installer/fabricator

Easy to fix

Can be tailored to the requirements of the door by simple adjustment

Just one model for left and right hand doors, and for door and frame/lintel fixing

Spring strength range EN 3-6 to suit virtually any application

Benefits for the architect/specifier

Compact closer design and sturdy arm assembly

Wide range of standard functions supplemented by optional extras

Benefits for the user

Optimum wall and door protection thanks to ''thinking'' backcheck

Closing speed virtually unaffected by temperature fluctuations

Relatively low opening resistance thanks to high mechanical efficiency

Specifications

Finish - Silver

Spring Strength - EN3-6

Type - With 'thinking' backcheck

Max. Door Width - 1400mm

Features - Adjustable Sweep Speed, Adjustable Latching Speed

Certification - CE Marked, Successful Independently Tested to BS EN 1154, ITT120 MM/IMM240
