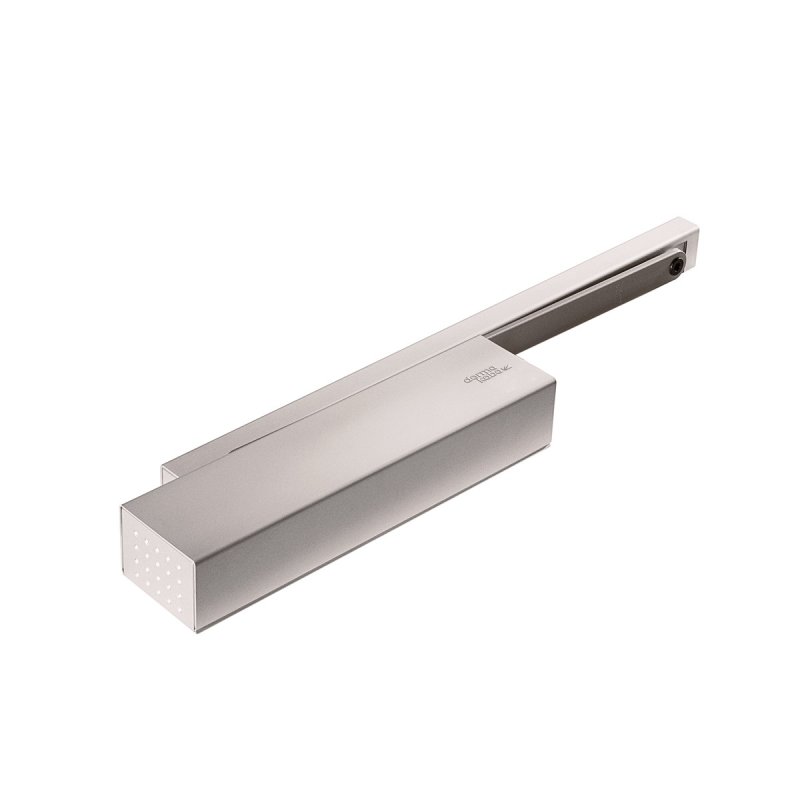

TS93B Cam Action 1250mm Door Closer Body - Pull Side - Silver
Save 5% on the BM Steel App
The BM Steel App is here to make your shopping experience even better!
This month we are offering BM Steel App users an exclusive 5% off your entire purchase. The discount will be added automatically at checkout.
Download the app today
*Not Including Tools & Workwear.
MAGAC-TS93 B BC/DC EN2-5
Available (allow 4 days for delivery)
Bulk discounts available:
Buy 10 or more for £170.95 each
check delivery cost
login to save
ask a questionProduct Specifications
Product Description
The TS 93 cam action door closer system provides a high-quality architectural solution for all project application requirements, featuring the DORMA heart-shaped cam to ensure exceptional ease of opening.
- Perfect solution for all applications
- Door widths up to 1250mm
- Adjustable power, 'thinking' backcheck and delayed action
- Suitable for all fixing positions
- Modular system
- For single and double leaf doors
The perfect project solution for all application needs
This particular version has a max door width of 1250mm, a spring strength of EN 2-5 (Adjustable) and is suited to be used on the pull side.
SLIDE ARM AND CHANNEL NOT INCLUDED
The TS 93 cam action door closer system sets new standards in user convenience in project applications. The proven DORMA technology of the heart-shaped cam ensures exceptional ease of opening.
Modular system
The TS93 series comprises a modular system which enables just a few door closer models to be combined with a number of different slide channels to meet virtually every conceivable functional requirement. Doors of varying designs can be equipped for a wide range of different applications.
Benefits for the trade/distributor
Clear product allocation ensures use of the right models for the right applications
Identical door closer model for single and double doors
Benefits for the installer/fabricator
The TS 93 system is suitable for all fixing positions
Mounting bracket with universal fixing hole pattern for optimal fixing
Simple, fast installation
Benefits for the specifier/architect
High-quality design ensures an ideal solution for all project applications
Harmonious appearance thanks to integral smoke detector
Available in a wide range of colors and finishes
Benefits for the user
Easy opening action and fully controlled closing
Adjustable hydraulic functions for easy adaptation to each specific door situation
Specifications:
Finish - Silver
Spring Strength - EN 2-5 (Adjustable)
Door Type - Pull Side
Max Door Width - 1250mm
Features - Adjustable Sweep Speed, Adjustable Latching Speed, Thicking 'backcheck', Adjustable Delayed Action
Certification - CE Marked, Successful Independently Tested to BS EN 1154, ITT120 MM/IMM240
